Drapery Measuring Instruction

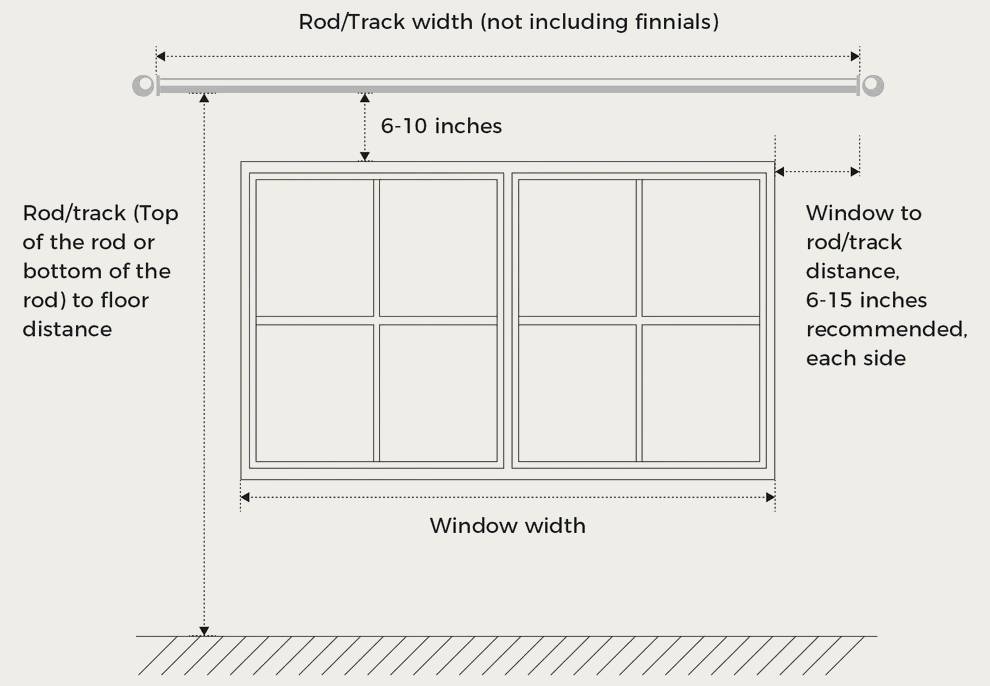

Step 1: Measure the Width (Determine Rod/Track Length and Placement)

If you have had the rod installed, please measure the rod length and record this measurement.

If you do not have the rod installed, first decide where you want the curtain rod to be mounted above and on the sides of the window frame. Consider how high you want the rod to create the desired visual effect.

• Height Above the Window Frame: Typically, curtain rods are installed 6-10 inches above the window frame to create the illusion of a taller window. Mark this height lightly with a pencil or use masking tape as a guide.
• Width Beyond the Window Frame: Add extra width (normally 6-15 inches) on each side of the window frame for the curtains stack. Mark these points lightly with a pencil or use masking tape as a guide.

Step 2: Know Havinora Default Fullness

To avoid draperies looking like a stretched sheet, you need to consider to add fullness for certain header styles for additional width to cover.

Pleated Style
The fabric fullness is already accounted for in the design. We use 200-230% fabric fullness to create the pleats, ensuring a rich and voluminous look.

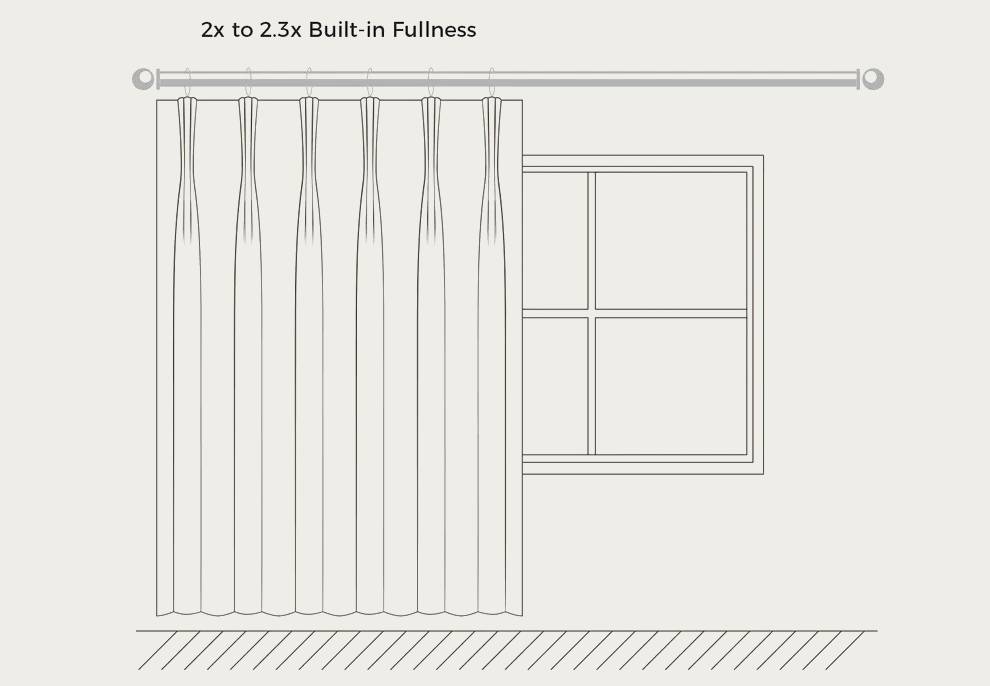

• 2x Built-in Fullness for pinch pleat, tailor pleat, inverted pleat, and goblet style.
• 2.3x Built-in Fullness for triple pleat and triple tailor pleat style.

*If you need a fuller look, you can consider adding extra 1.25x fullness based on your preference. This is a personal choice, not a requirement.

Soft Top and Grommet Style

The default fullness is 1 (or 100%), then you should consider multiply 150-200% fullness for final measured width. 150% fullness will produce a more tailored look, while 200% fullness, which is recommended will create a richer, more opulent appearance. Recommended Fullness:

• 1.5 times the rod width for a moderate gather.
• 2 times the rod width for a standard gather.
• You determine the fullness ratio to create folds according to header type.
• You determine how many panels you need to achieve the desired fullness.
• Fullness ratio varies by header styles.

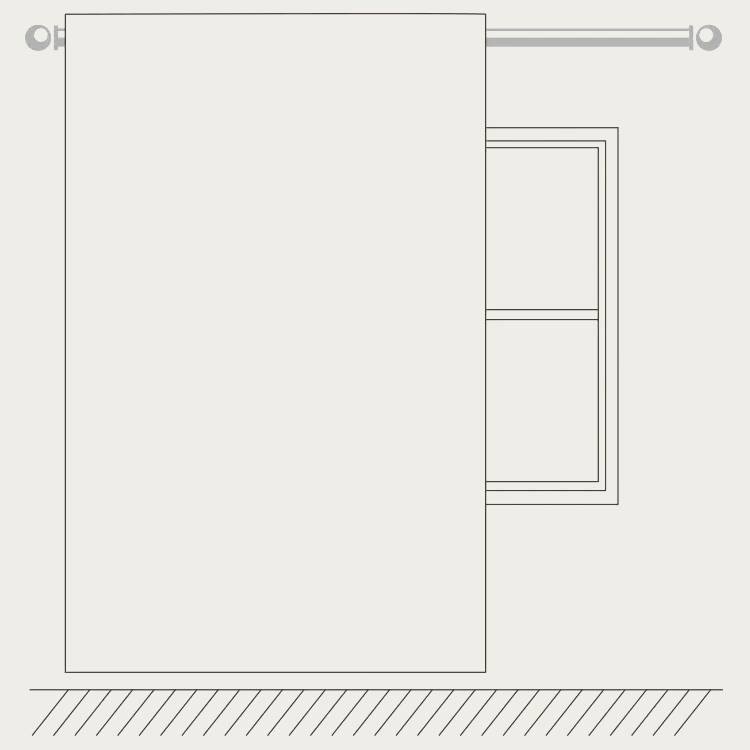

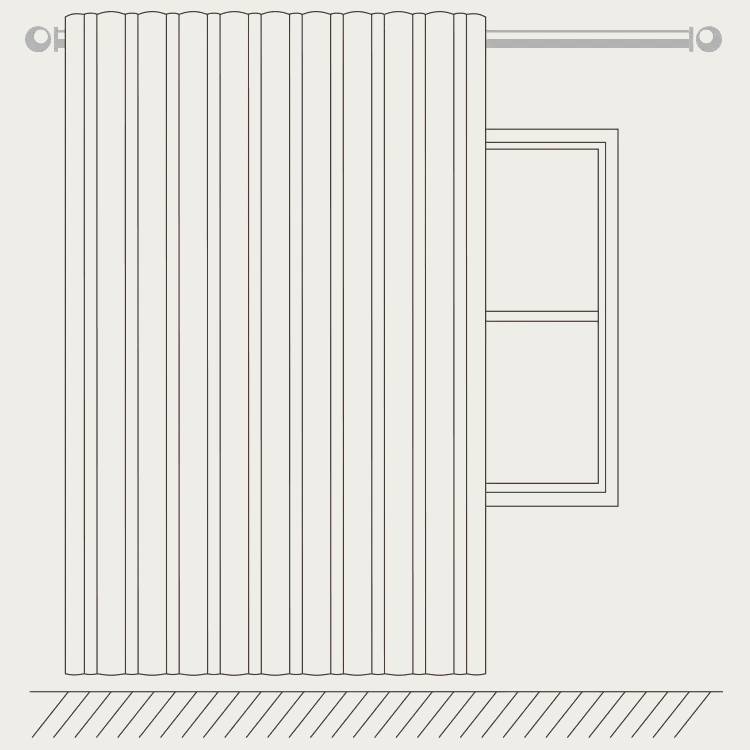

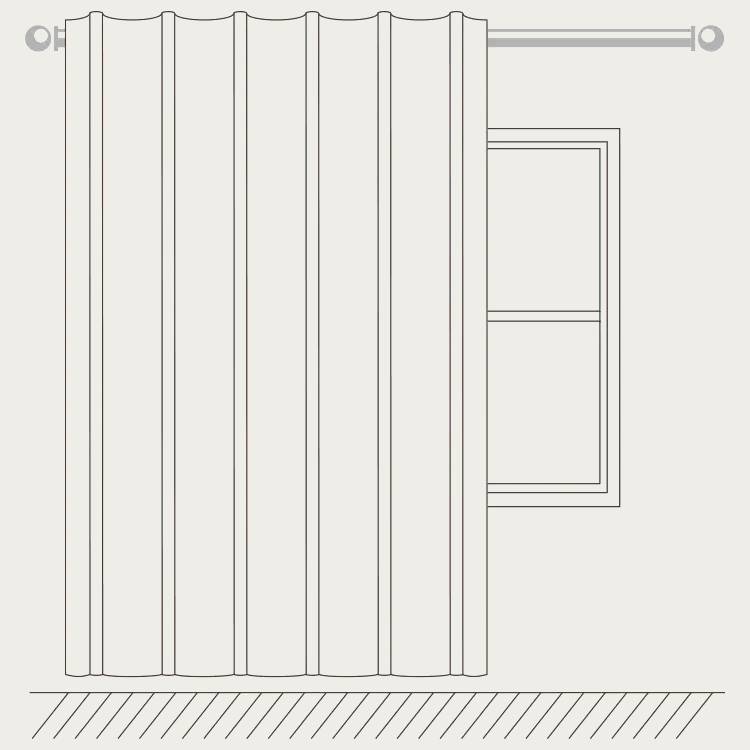

               1.0X Fullness                                          1.5X Fullness                                            2.0X Fullness

Ripple Fold Style

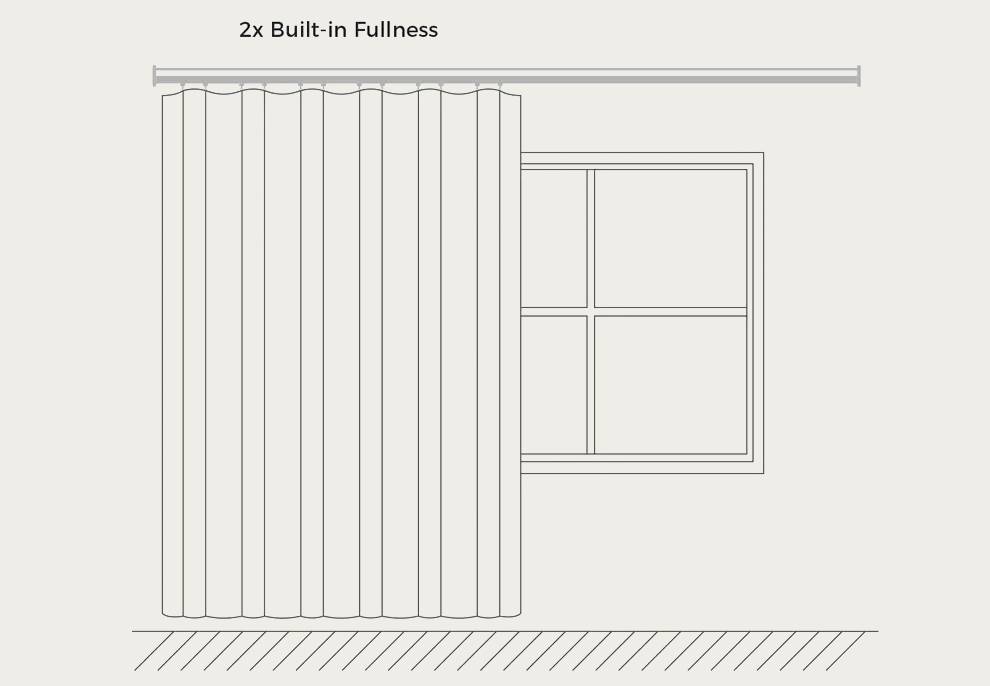

The default fullness is 2 (or 200%), 200% fabric width is used for wave folds to create the finished width you order. Adding additional fabric to create fullness is unnecessary.
Havinora offers two types of ripple fold curtains:

• Belt Hook Type: uses a series of small hooks attached to a belt or strap sewn onto the curtain fabric.
• Tape Buckle Type: use fabric tapes that are sewn into the top of the curtain panels.

Step 3: Determine Drapery Finished Width and Length (with example)

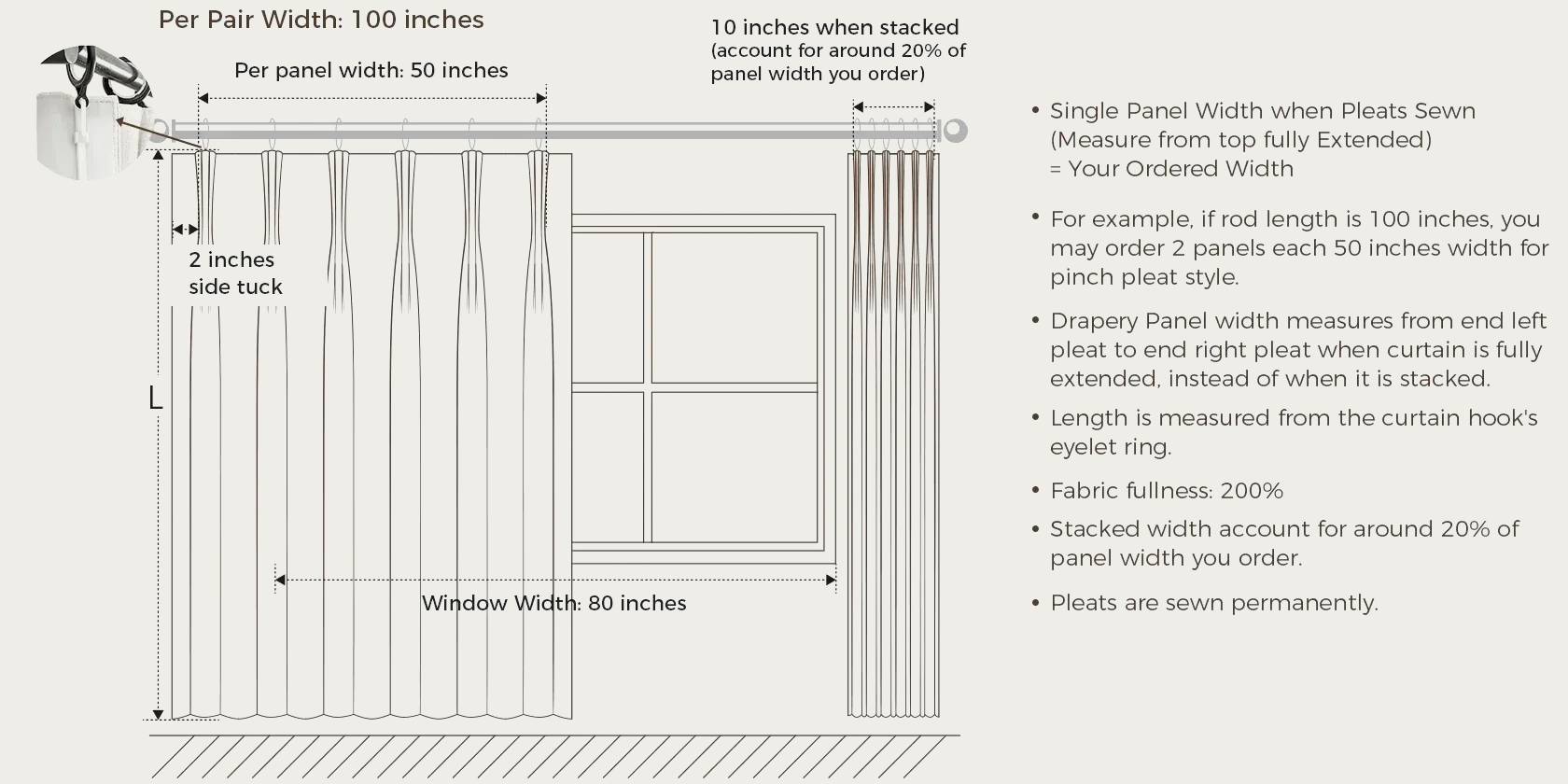

Pleated

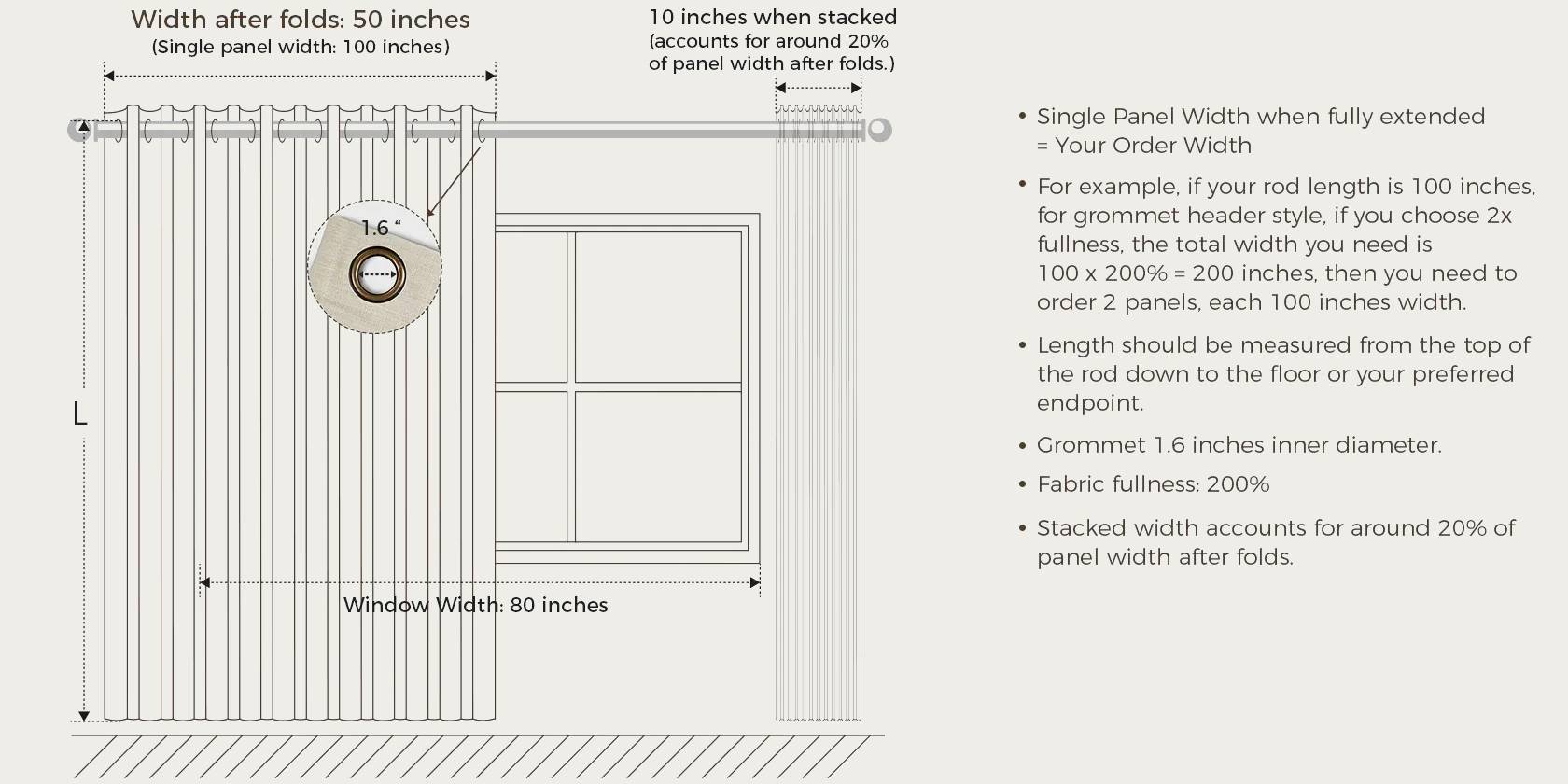

Grommet

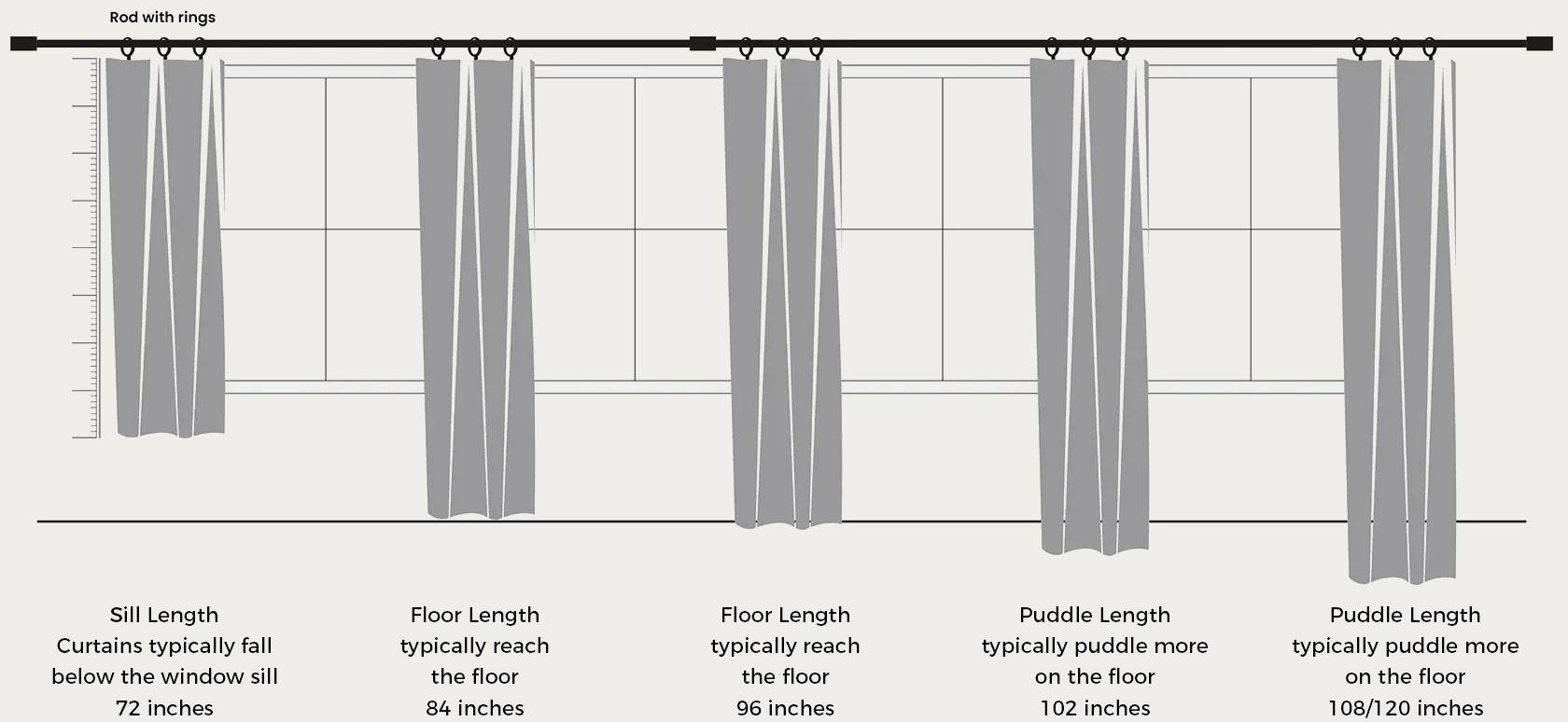

Find Your Perfect Placement

• Different curtain lengths create diverse visual experiences to your room.

Note

• Use a steel tape measure, measuring to the nearest 1 inch in width and length.
• Measure each window and doorway individually.
• The perception of fullness can vary. Some may prefer a more relaxed drape, while others might want a fuller, more gathered appearance. Consider your personal taste and the intended look of your space when selecting the fullness factor.
• This guide offers recommendations and advice but not inclusive for covering all possible scenarios and methods.
